Imer Step-Up 120 Series Spray and Grout Pump - 1106180

Pre-Order By Phone 800-515-1002
Available in 3-5 Days
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

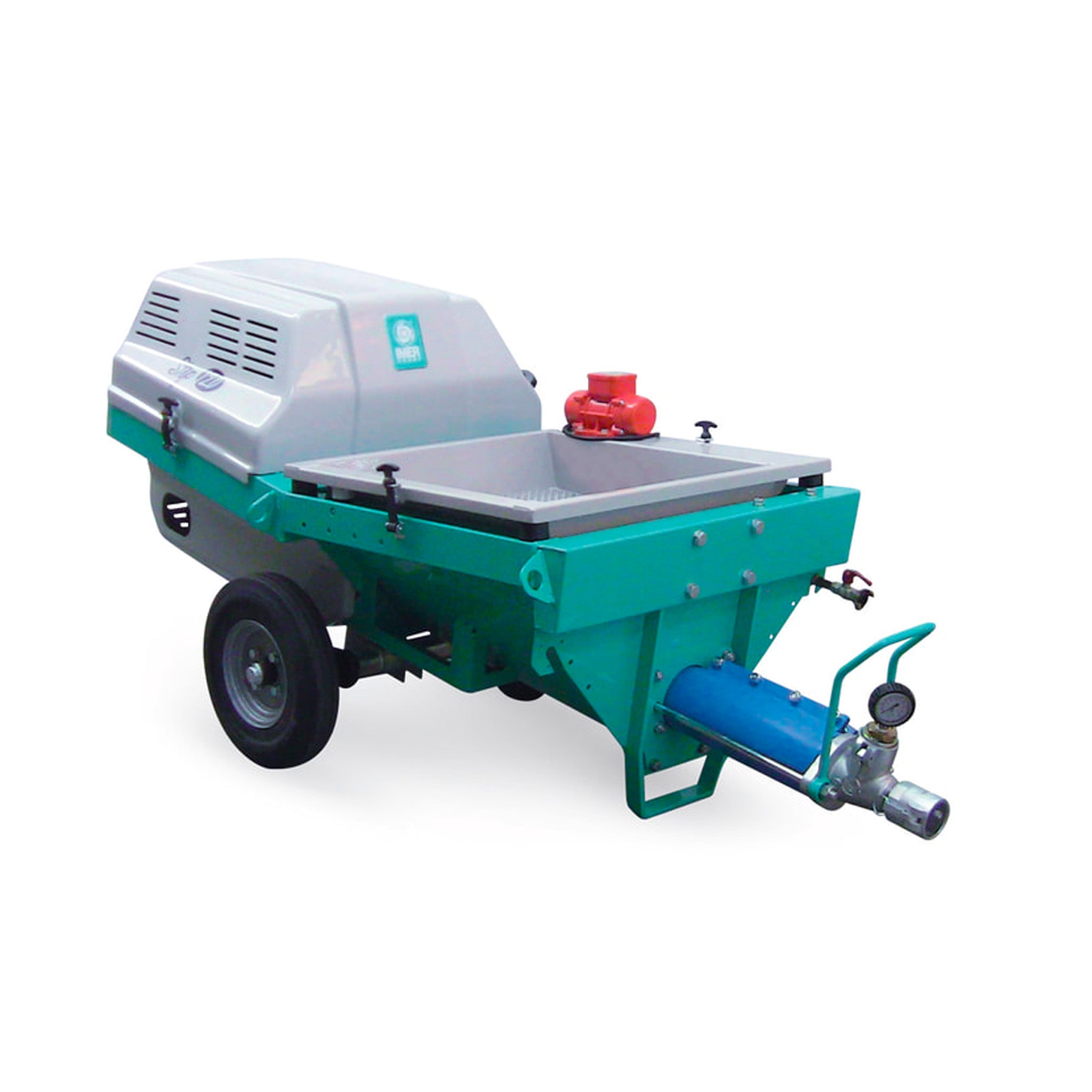

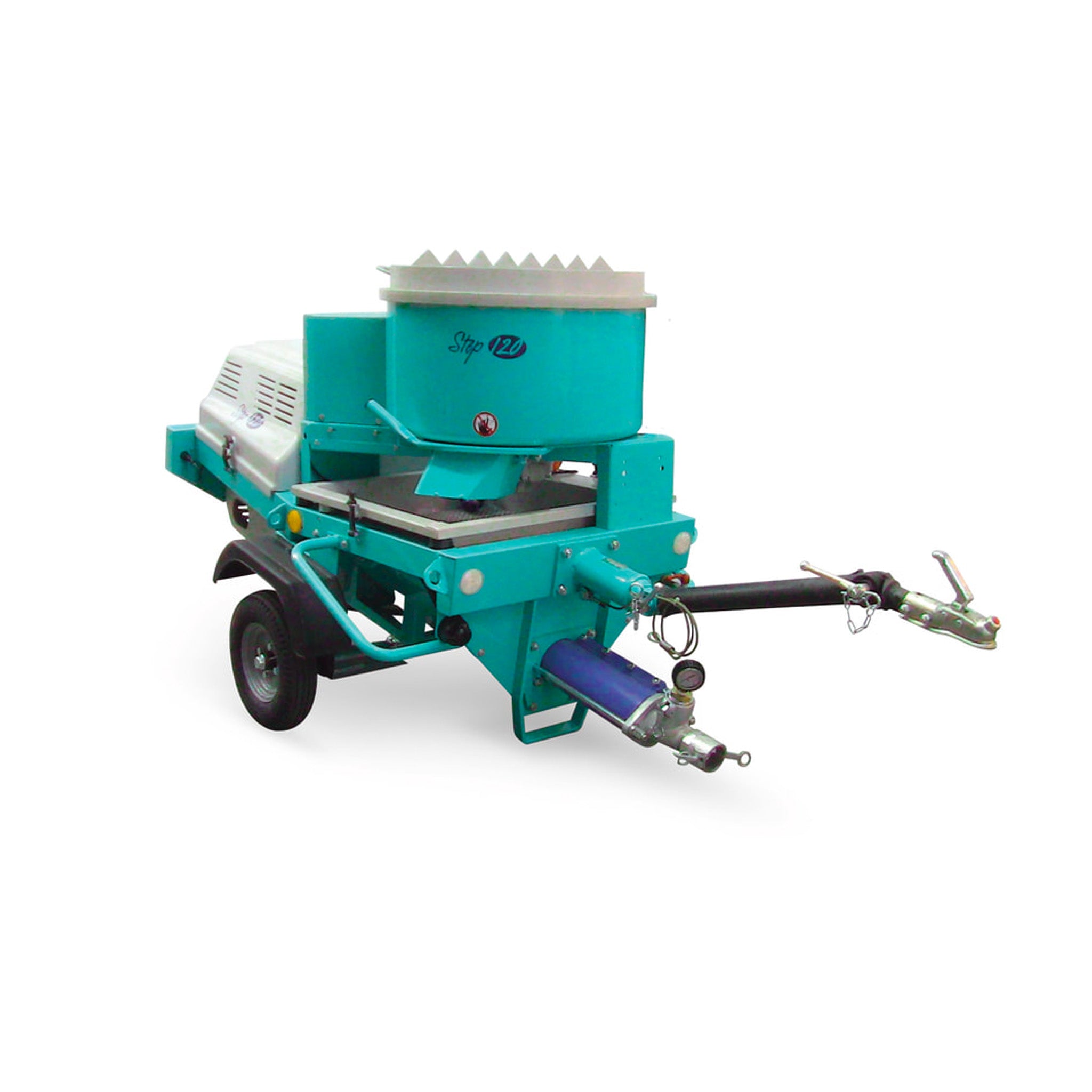

When you need more power to push through stiffer material or need more volume, then look no further than the Step-Up 120 series of pumps. The Step-Up 120 is a towable but very compact pump suited for unique pumping situations and environments. These pumps are extremely versatile. Pump or spray mortars, stuccos, grouts, restoration mortars, underlayments, fireproofing, waterproofings, along with many other materials. Shown with the Step-Up 120 pan mixer for continuous mixing and pumping.

  • Optional vertical shaft mixer for conventional mortar and preblended grouts
  • Inverter controlled, single-phase, 3 HP motor with “turbo boost” to 5 HP
  • High-capacity hopper with optional vibrating screen
  • Shown with standard road towing torsion bar axle and fenders
  • Shown with standard grate and bag breaker
  • Loading height 48”
  • Mixing output of 3.2 CF
  • Articulating towbar adjusts to any angle
  • Includes adjustable IM25L stator to pump 3/8” Pressure: bar 20 (PSI 290) Flow rate at 200 rpm: 45 l/min (Gal/min 12)
