Simpson Strong-Tie ZMax 3.13 in. H X 3.56 in. W 14 speed Galvanized Steel Post Base - ABA46Z
Pre-Order By Phone 800-515-1002
Available in 3-5 Days
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

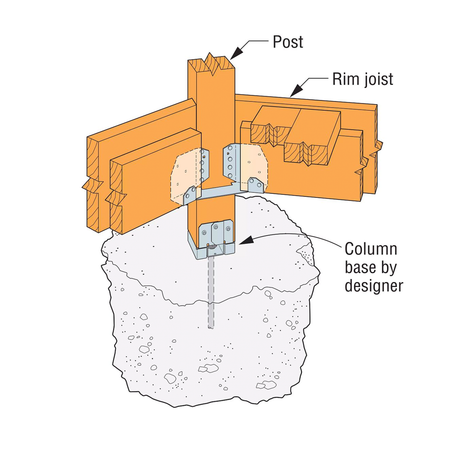

The ABA is designed to attach wooden posts to existing concrete. The built-in 1" standoff of this adjustable post base helps to prevent rot at the end of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation.
Key Features
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1" stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
Finish
- ZMAX®
Installation
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
- Place the base, cut washer(s) and nut(s) on the anchor bolt(s). Make any necessary adjustments to post placement and tighten the nut securely on the anchor bolt.
- Place the post in the ABA and fasten using nails or Strong-Drive SD Connector screws
