Simpson Strong-Tie 5.31 in. H X 5.31 in. W n/a Ga. Plastic Composite Base - CPS6

Pre-Order By Phone 800-515-1002
Available in 3-5 Days
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

The CPS is a composite-plastic standoff base designed for use both indoors and outdoors. The CPS attaches to the bottom of the solid wood column and to concrete with threaded rod and epoxy. The CPS is load rated and features either a square or a rectangle shape depending upon post dimensions.

Key Features

  • Provides code-required 1" standoff
  • Multiple sizes to support a variety of projects
  • Black finish for a custom look

Installation

Post:

  • Drill a 3/4"-diameter hole, 10" into the center of the post.
  • Clean out sawdust. Fill hole halfway with Simpson Strong-Tie® SET-3G epoxy anchoring adhesive.
  • Insert all-thread rod while twisting the rod, and allow the epoxy to set and cure.
  • Secure standoff to post using four 0.148" x 3" nails.

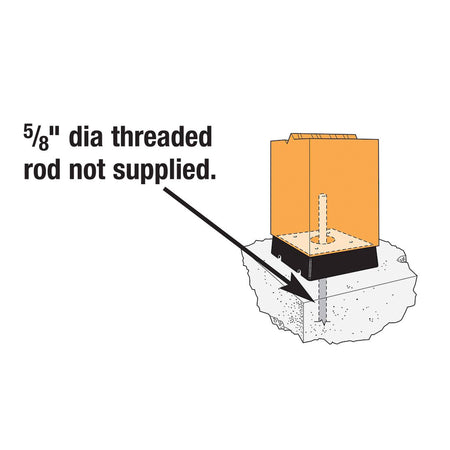

Concrete:

  • Drill a 3/4"-diameter hole per anchor design (see table footnote 2).
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie SET-3G epoxy anchoring adhesive. Insert post subassembly into hole, and allow the epoxy to set and cure.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
