Simpson Strong-Tie 3.38 in. H X 6 in. W 18 Ga. Galvanized Steel Post Cap - BC6
Pre-Order By Phone 800-515-1002
Available in 3-5 Days
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

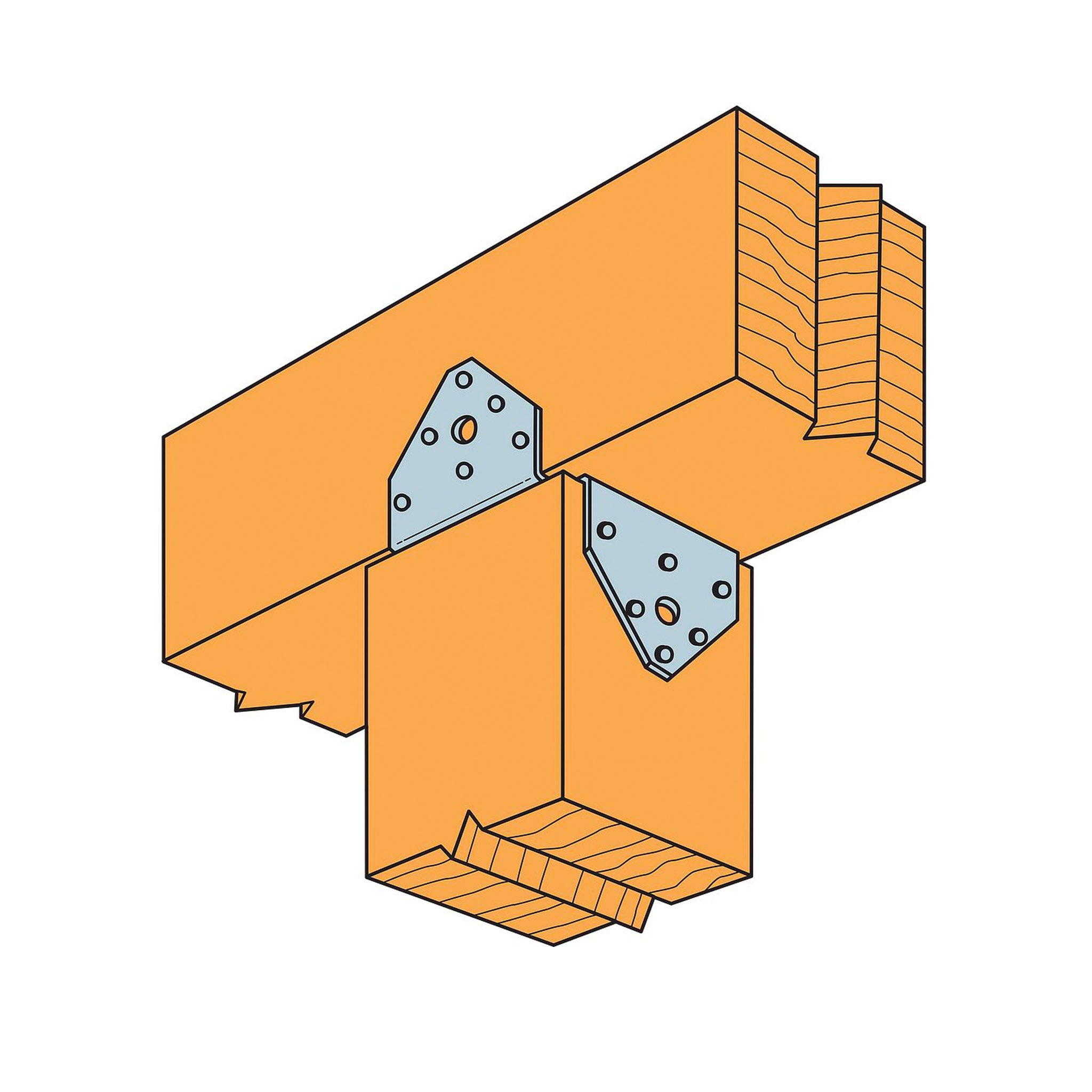

The BC post cap is designed to connect a beam to a post. The 18-gauge material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Key Features
- Opposing flanges provide increased lateral resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
- Light-gauge material designed for light-duty applications
Material
- 18 gauge
Finish
- Galvanized. Some products available in ZMAX® coating. See Corrosion Information.
Installation
- Use all specified fasteners; see General Notes
- Do not install bolts into pilot holes
- Install with 0.162″ x 3 1/2″ nails or 0.162″ x 2 1/2″ nails
