Simpson Strong-Tie 2.5 in. H X 5.5 in. W 18 Ga. Galvanized Steel Half Base - BC46

Pre-Order By Phone 800-515-1002
Available in 3-5 Days
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

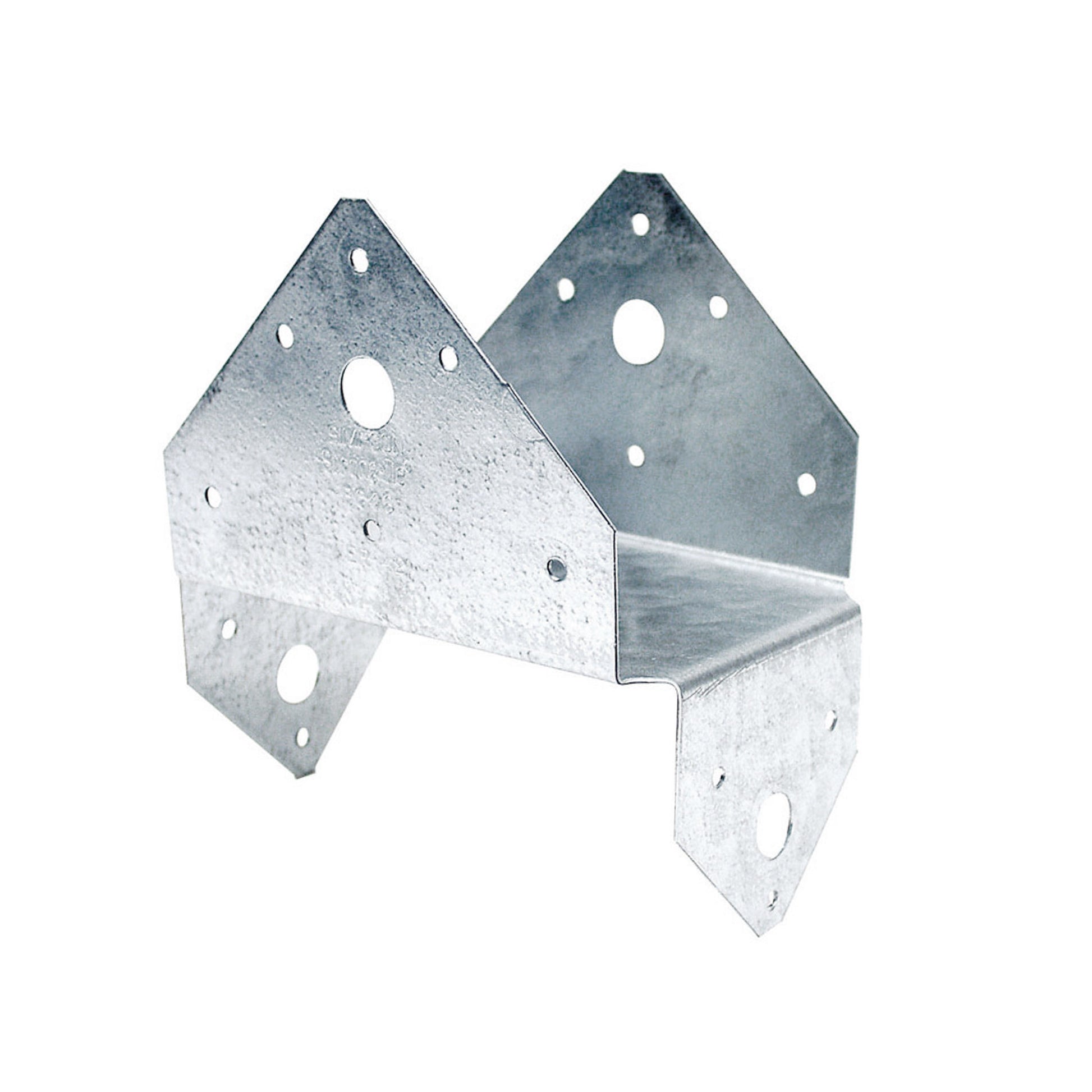

The BC post cap is designed to connect a beam to a post. The 18-gauge material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.

Key Features

  • Opposing flanges provide increased lateral resistance
  • Attains full allowable load using either common nail or pneumatic nail sizes
  • Light-gauge material designed for light-duty applications

Material

  • 18 gauge

Finish

  • Galvanized. Some products available in ZMAX® coating. See Corrosion Information.

Installation

  • Use all specified fasteners; see General Notes
  • Do not install bolts into pilot holes
  • Install with 0.162″ x 3 1/2″ nails or 0.162″ x 2 1/2″ nails
