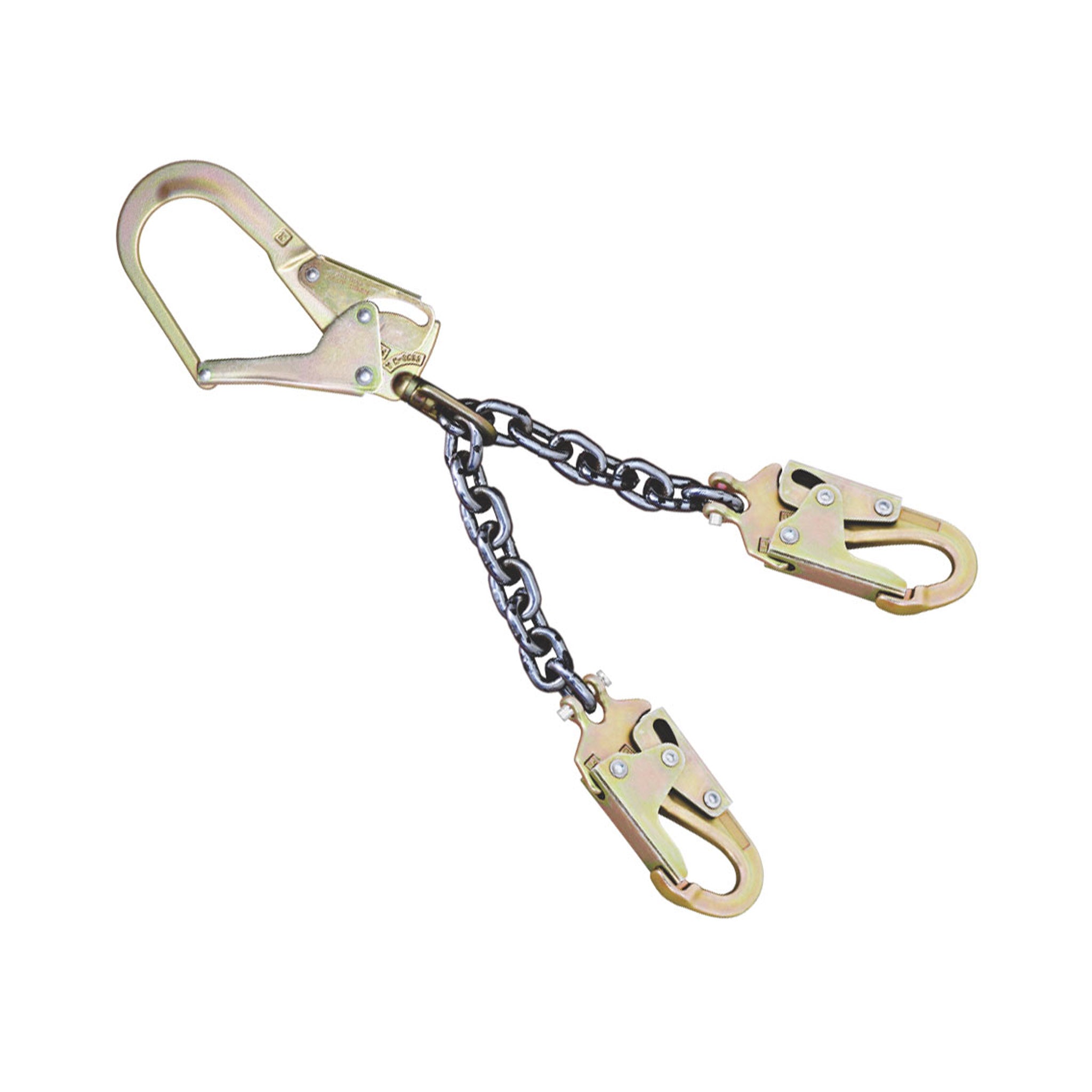

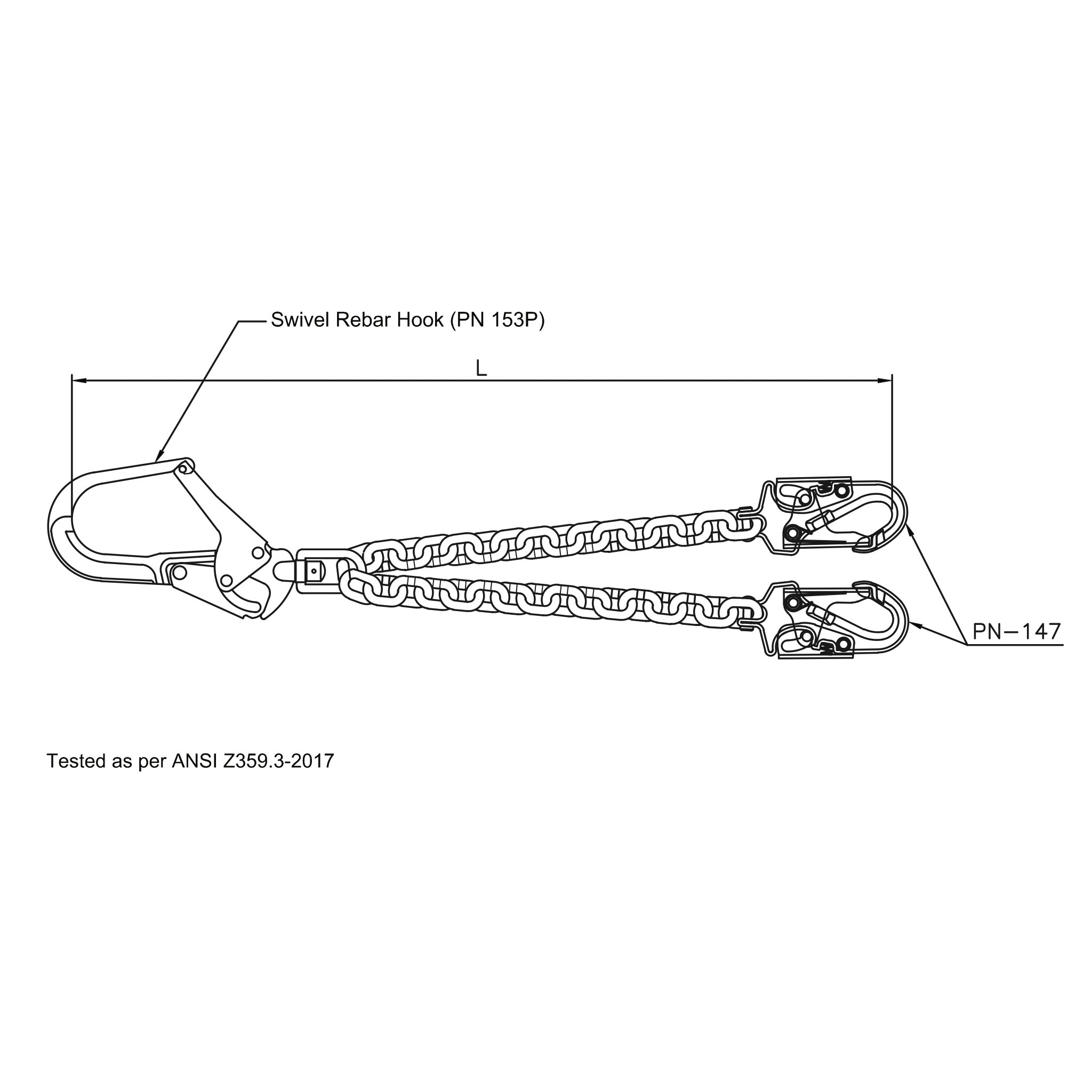

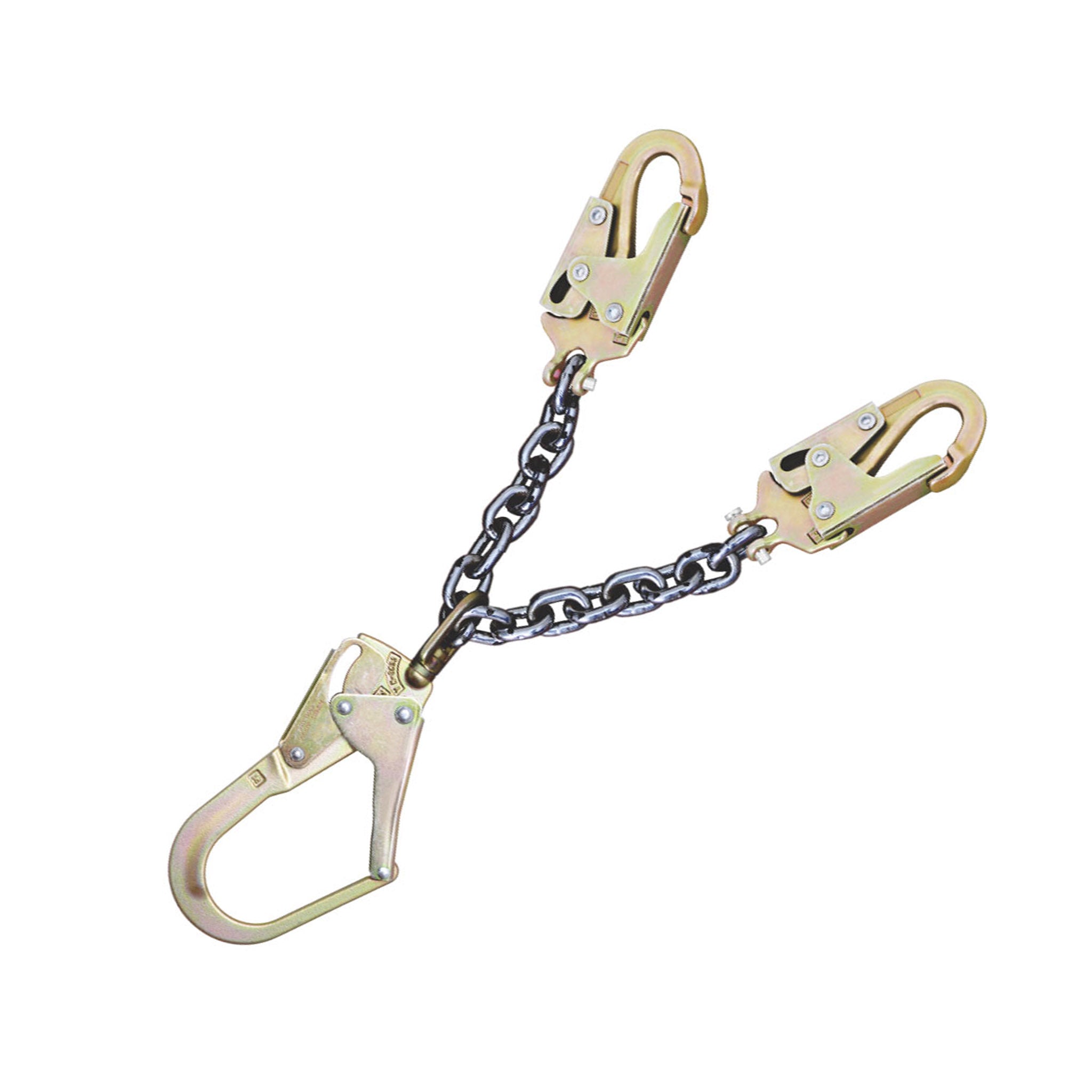

Rebar chain positioning device, one 2-1/4” swivel rebar hook on top and two 3/4” snap hooks on opposite ends. Meets or exceeds ANSI Z359.3-2007.
DESIGN:
- Double, Y shaped lanyard.
- This positioning device incorporates a high tensile strength chain and has swivel rebar hook.
- The two ends of the chain have the special forged clevis snap hooks used for positioning.
- Available Length: 24”
CHAIN:
0.31” diameter link of chain
Grade of Chain: Grade 80
Tensile Strength: Min. 5000 lbs.
METAL COMPONENT:
Material: Alloy Steel
Plating: Zinc plated
Finish: Deburred & polished
WEIGHT:
24 inch: 4.9 lbs. ± 0.2 lbs.
VITAL TEST COMPLIANCE:
Static Strength: 5000 lbs. for 1 minute
Dynamic Strength: When tested with 282 lbs. with a free fall to generate 3600 lbs. force on the receiving structure mass held clear off the ground for a period of 1 minute.
