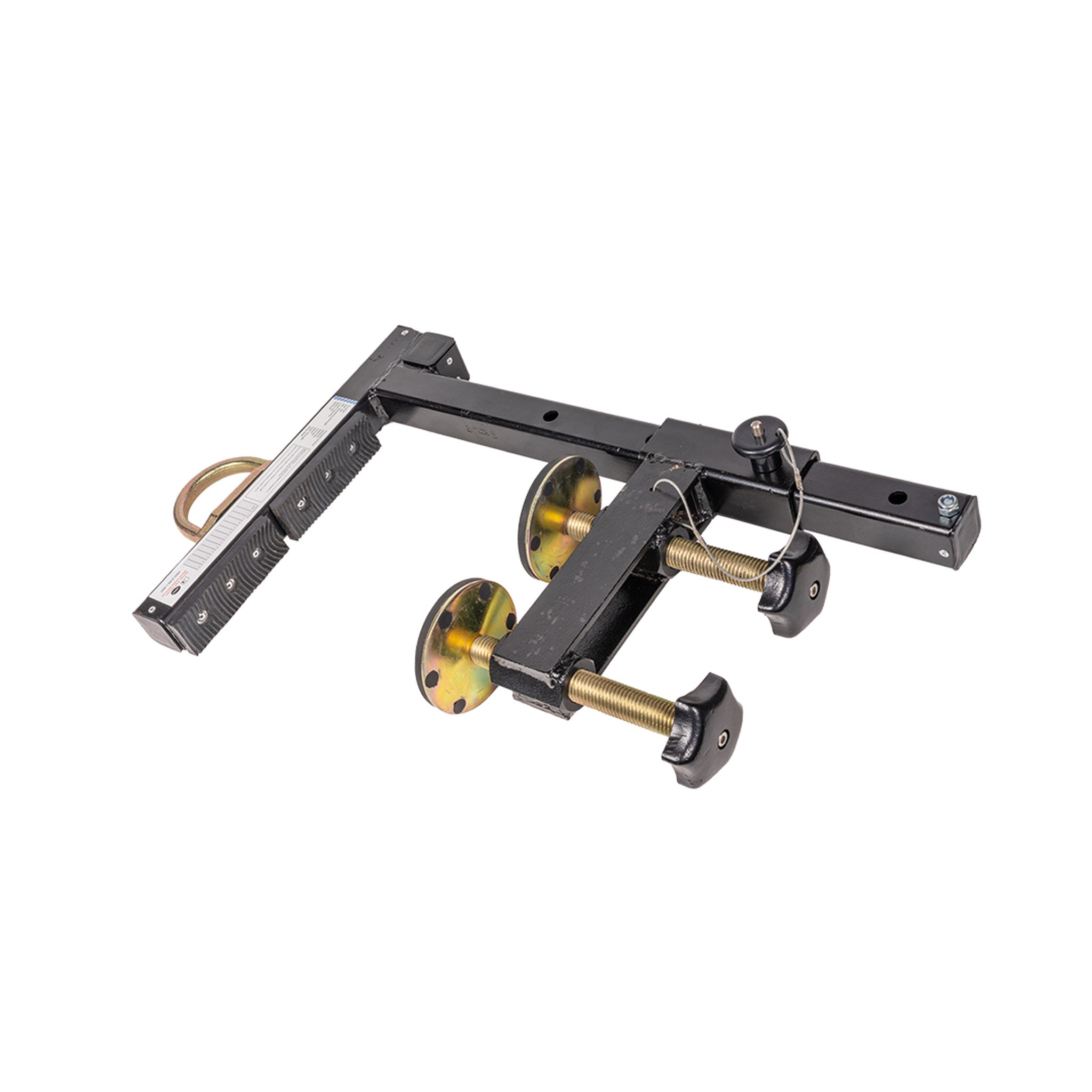

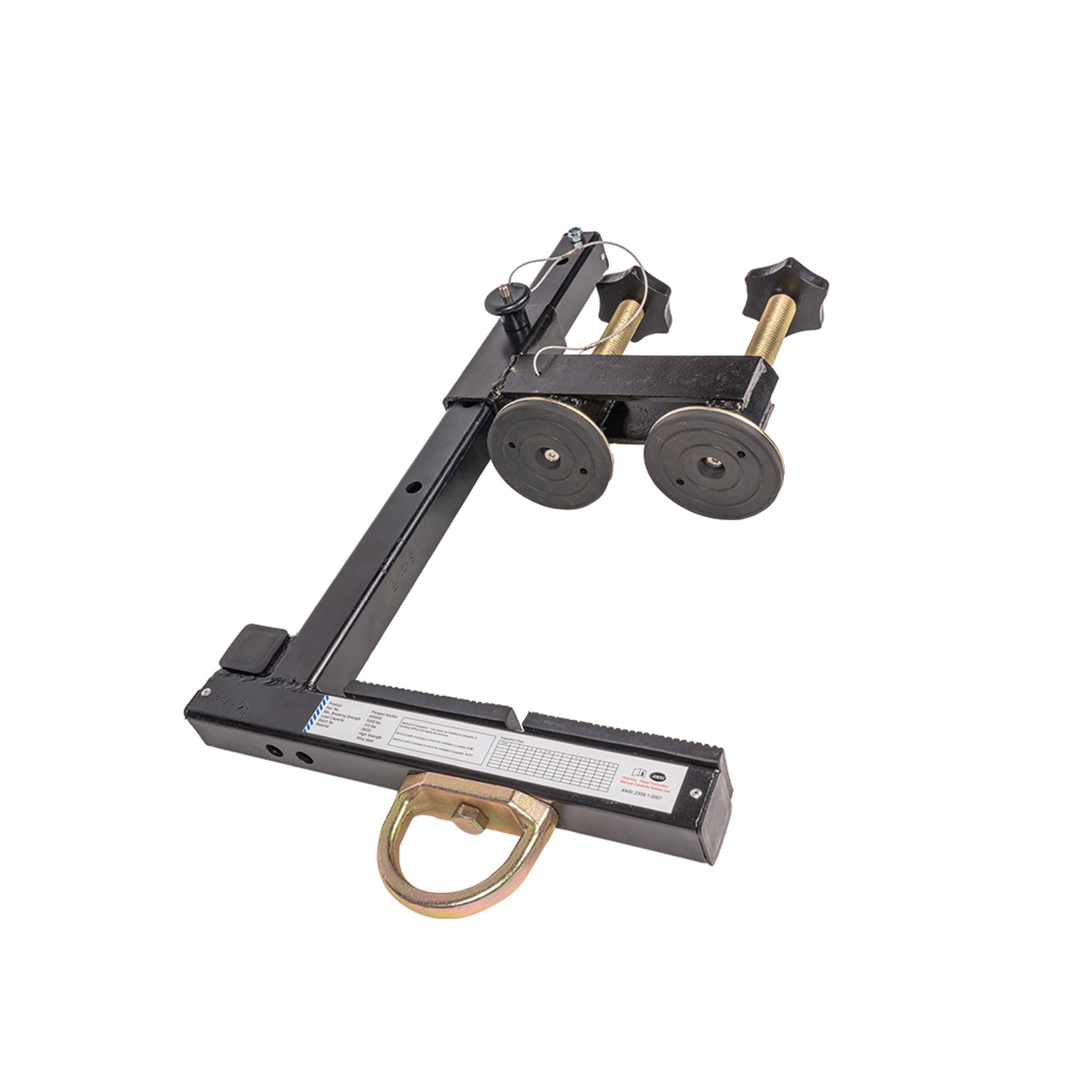

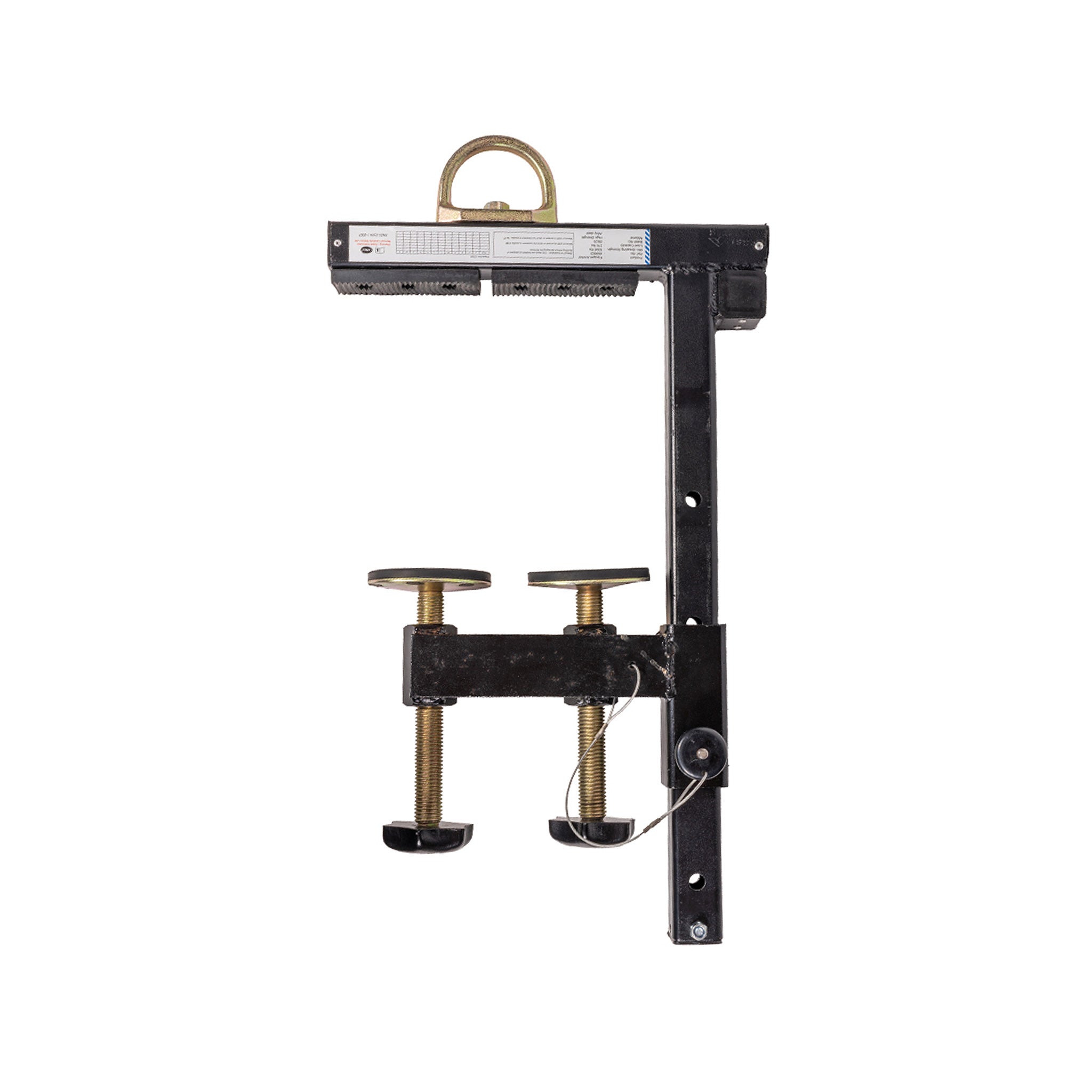

Parapet Anchor. Galvanized Steel. 2.36′′ – 14.17′′ parapet range. Min breaking strength 5000 lbs. Meets or exceeds ANSI Z359.1-2007.

Key Features

DESIGN:

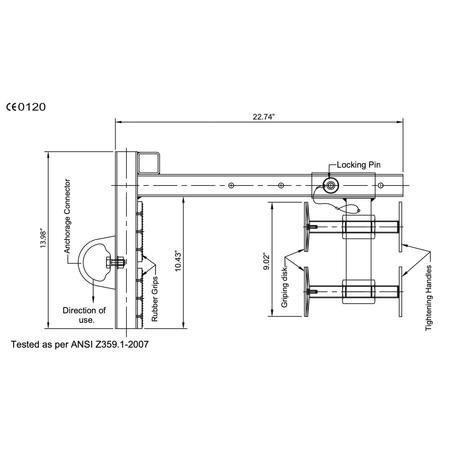

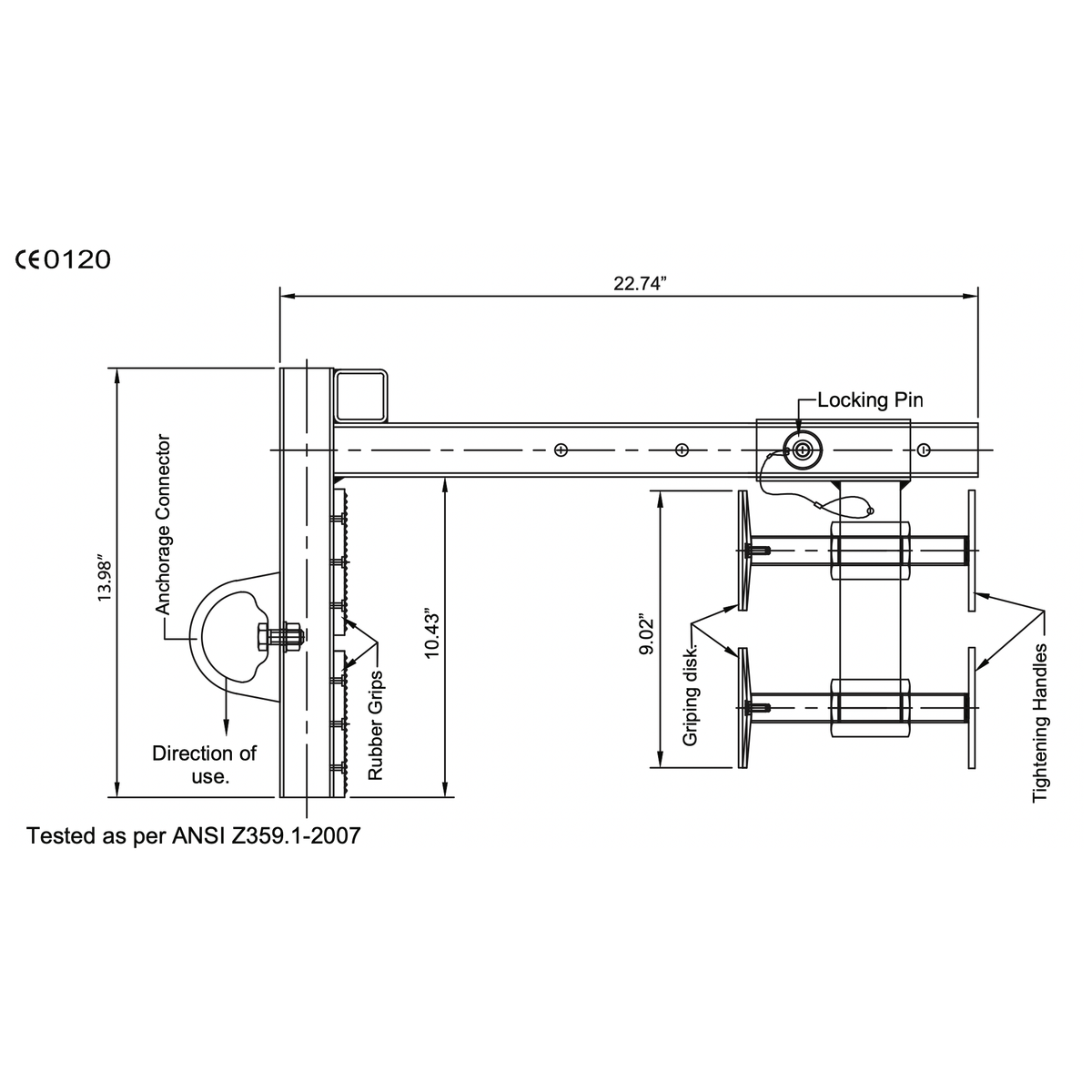

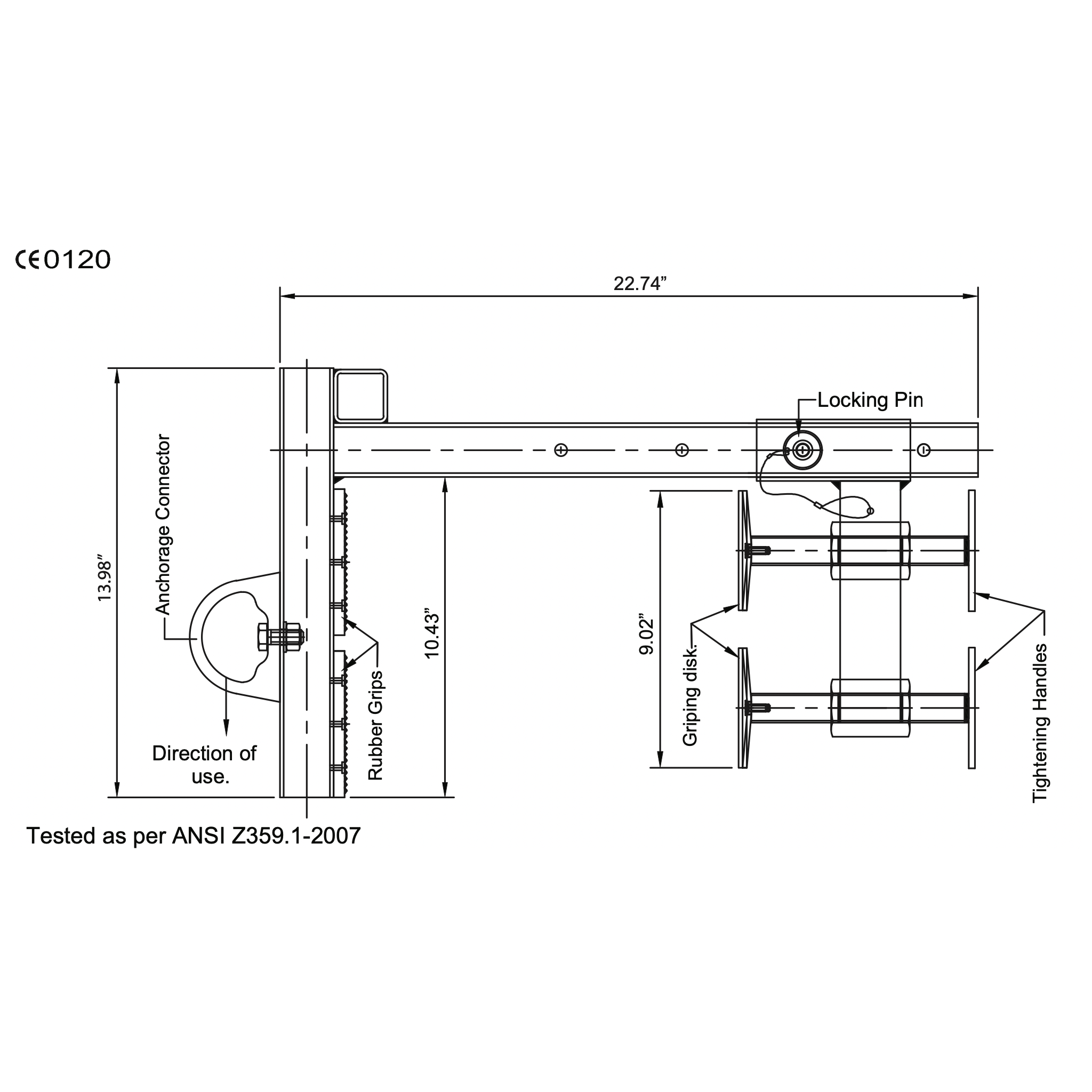

  • Anchor suitable to be installed on the parapet of a building such that the anchor point lies at the top on the outside facade of the building.
  • Suitable to be installed on varying thicknesses of a parapet. Width adjustment feature provided.
  • Tightening on to the parapet by use of rubber disks.

MIN. WIDTH OF THE PARAPET ON WHICH INSTALLATION IS POSSIBLE:

2.36 in.

MIN. WIDTH OF THE PARAPET ON WHICH INSTALLATION IS POSSIBLE:

14.17 in.

MATERIAL:

High strength alloy steel

FINISH:

Silver/yellow galvanized

SYSTEM STRENGTH:

Greater than 25 kN

CONFORM TO NORM:

Meets or exeeds ANSI Z359.1-2007

WEIGHT:

19.84 lbs. ± 0.22 lbs.
