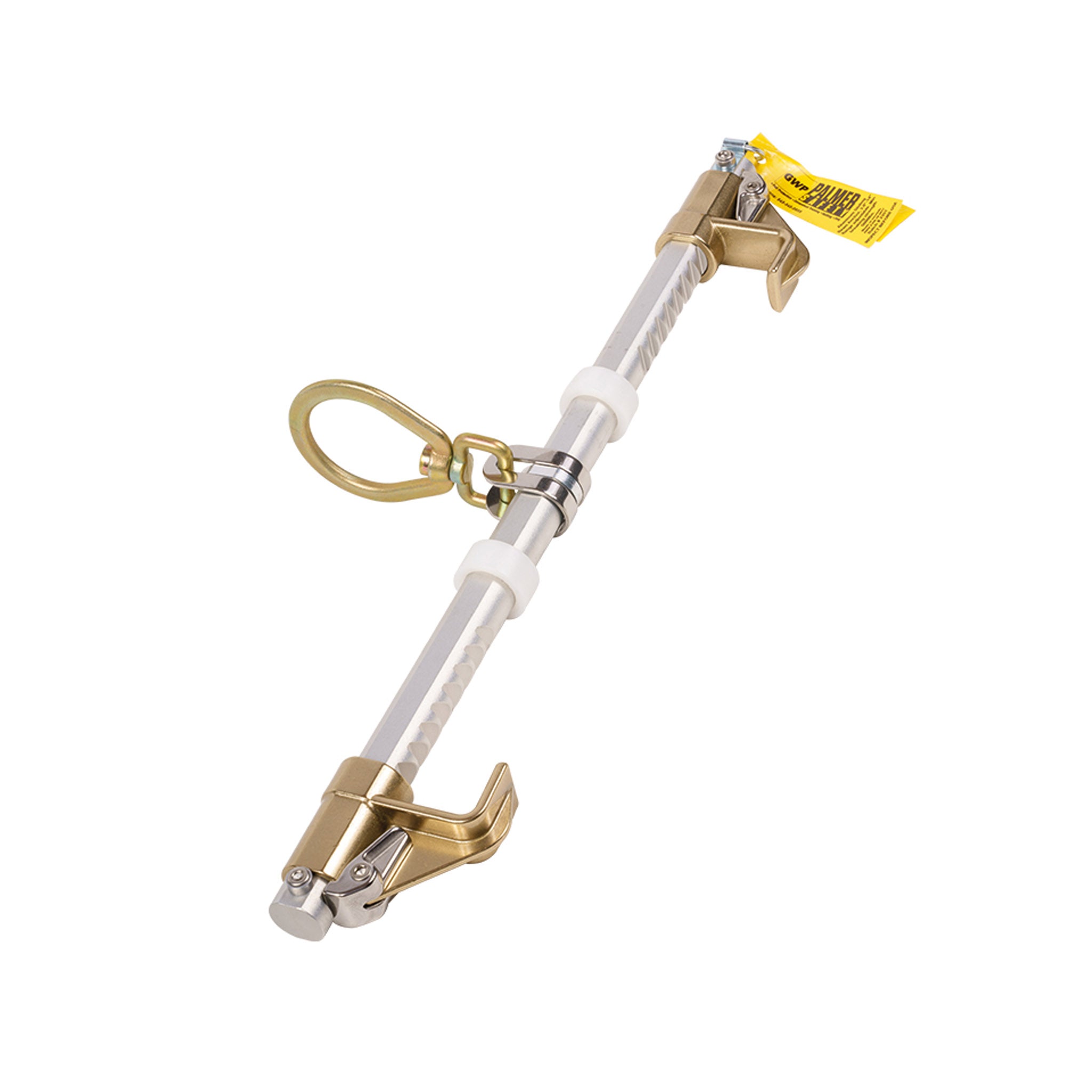

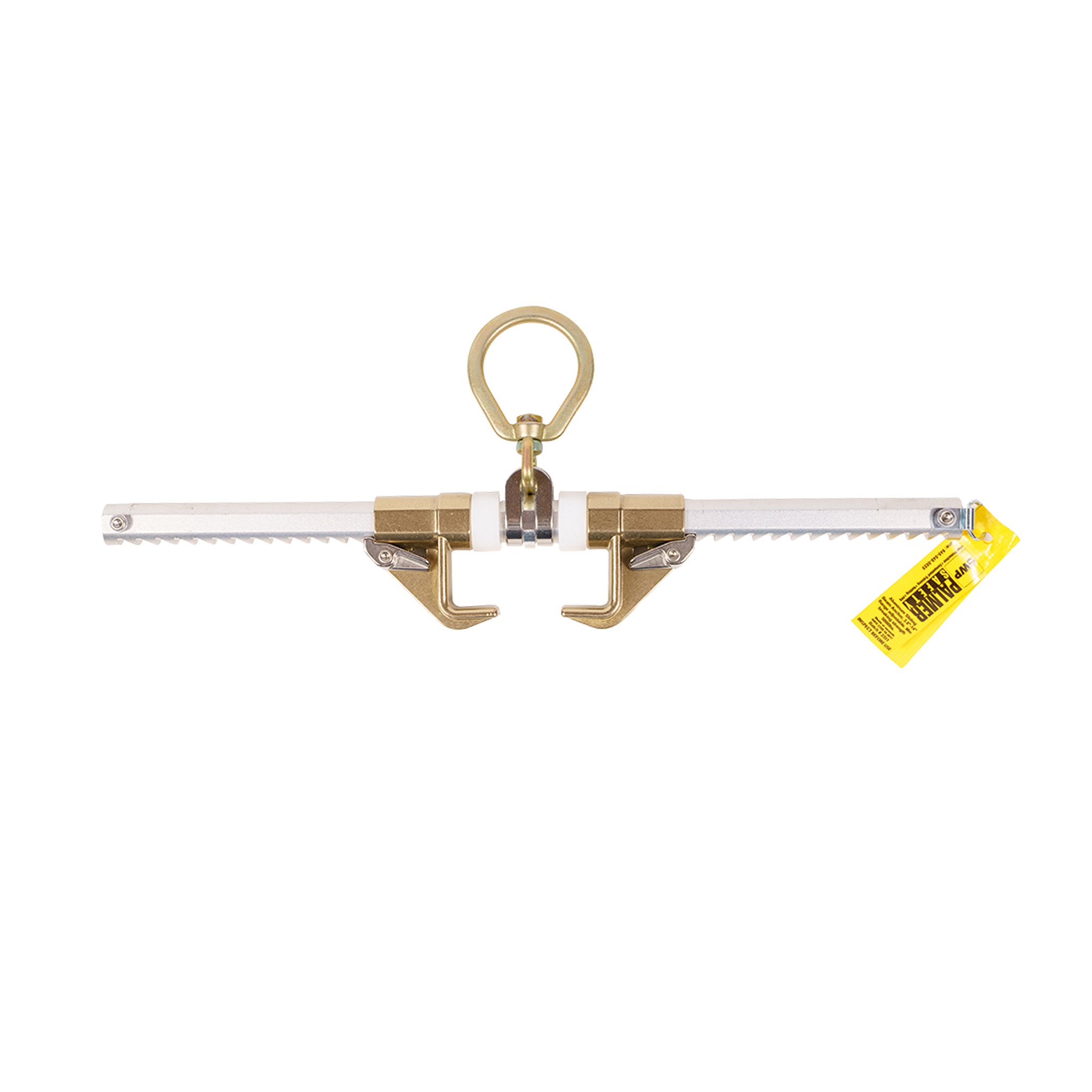

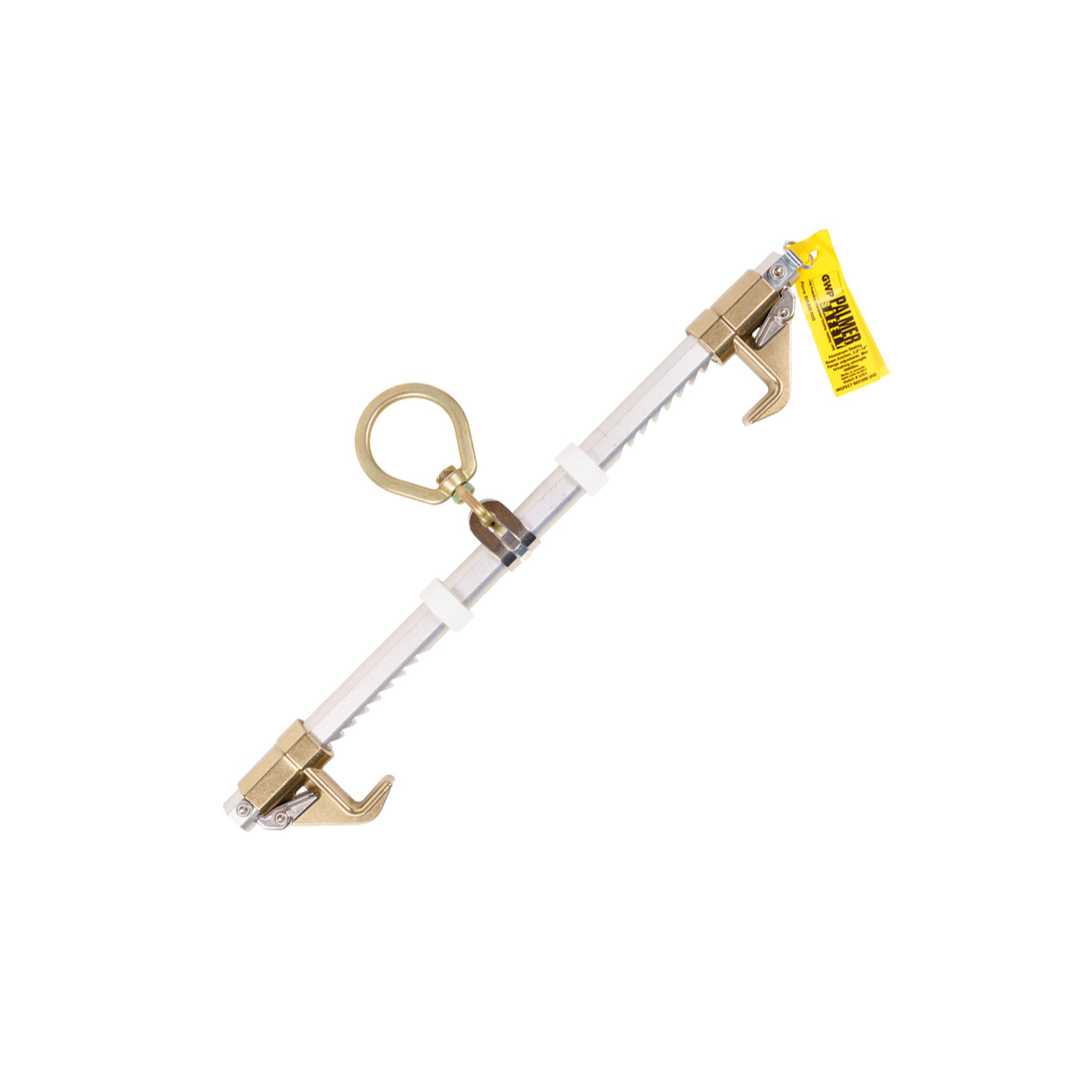

Palmer Safety Flange Adjustable (3 in.– 6 in.) Beam Anchor - A3145001
Order By Phone 800-515-1002
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232
Beam Anchor, 3′′ – 6′′ flange adjustable. Min breaking strength 5000 lbs. Meets or exceeds ANSI Z359.18-2017 Type A.

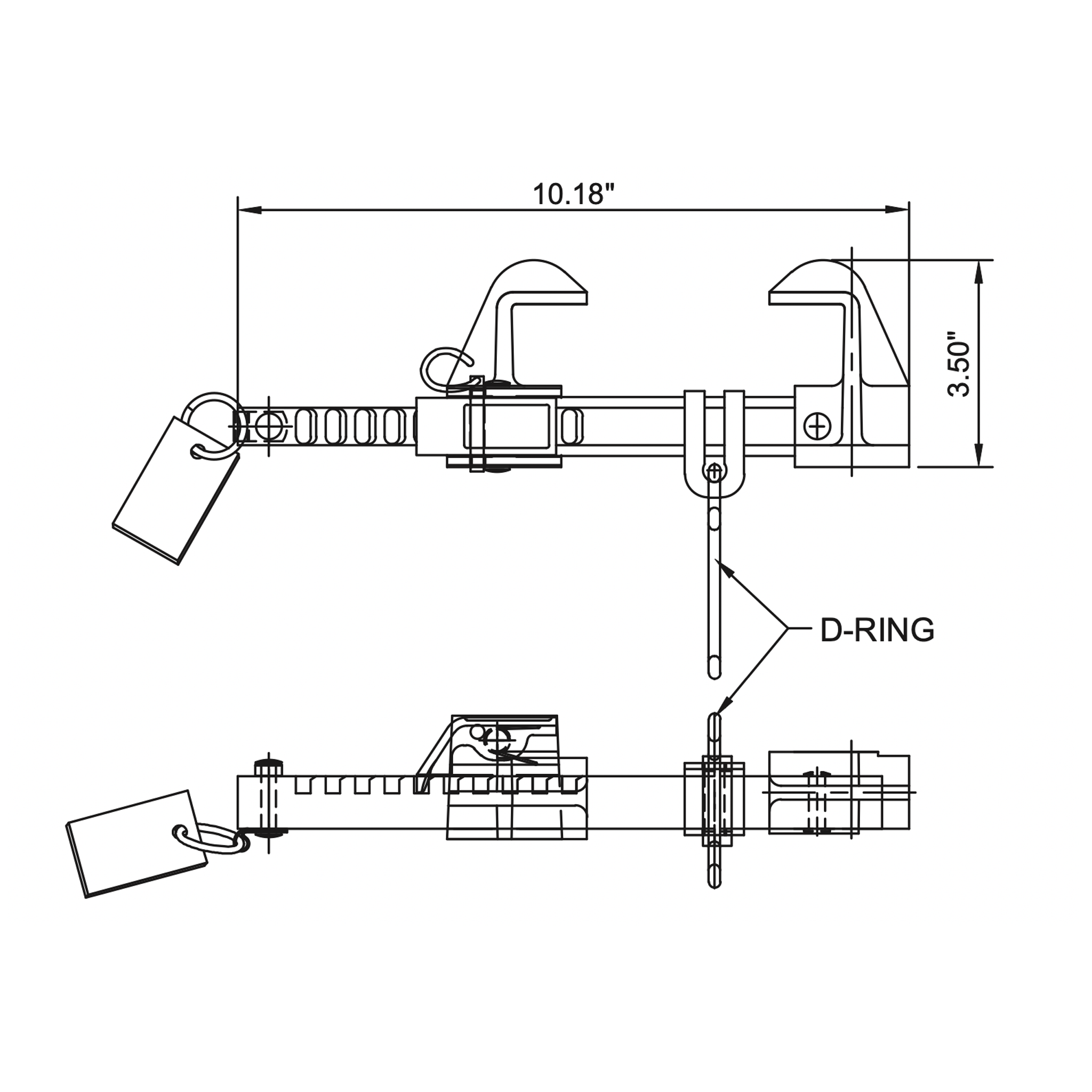

DESIGN:
- Anchor capable of being installed on flange of beams.
- Adjustment of the jaw to variable positions enables it to be installed to varying flange widths.
MIN FLANGE WIDTH SUITABLE
FOR INSTALLATION:
74 mm (2.92”)
MAX FLANGE WIDTH SUITABLE
FOR INSTALLATION:
150 mm (5.90”)
MATERIAL:
Aluminum Alloy & Brass
SYSTEM STRENGTH
STRENGTH COMPLIANCE:
Greater than 5000 lbs. (2268 kg)
MAX USER WEIGHT:
310 lbs. / 140kg
CONFORM TO THE NORM:
ANSI Z359.18:2017 Type A
WEIGHT:
3.43 lbs. / 1556g
