Palmer Safety BeamGuard Hll Stanchion - BGSAPOST

Order By Phone 800-515-1002
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232

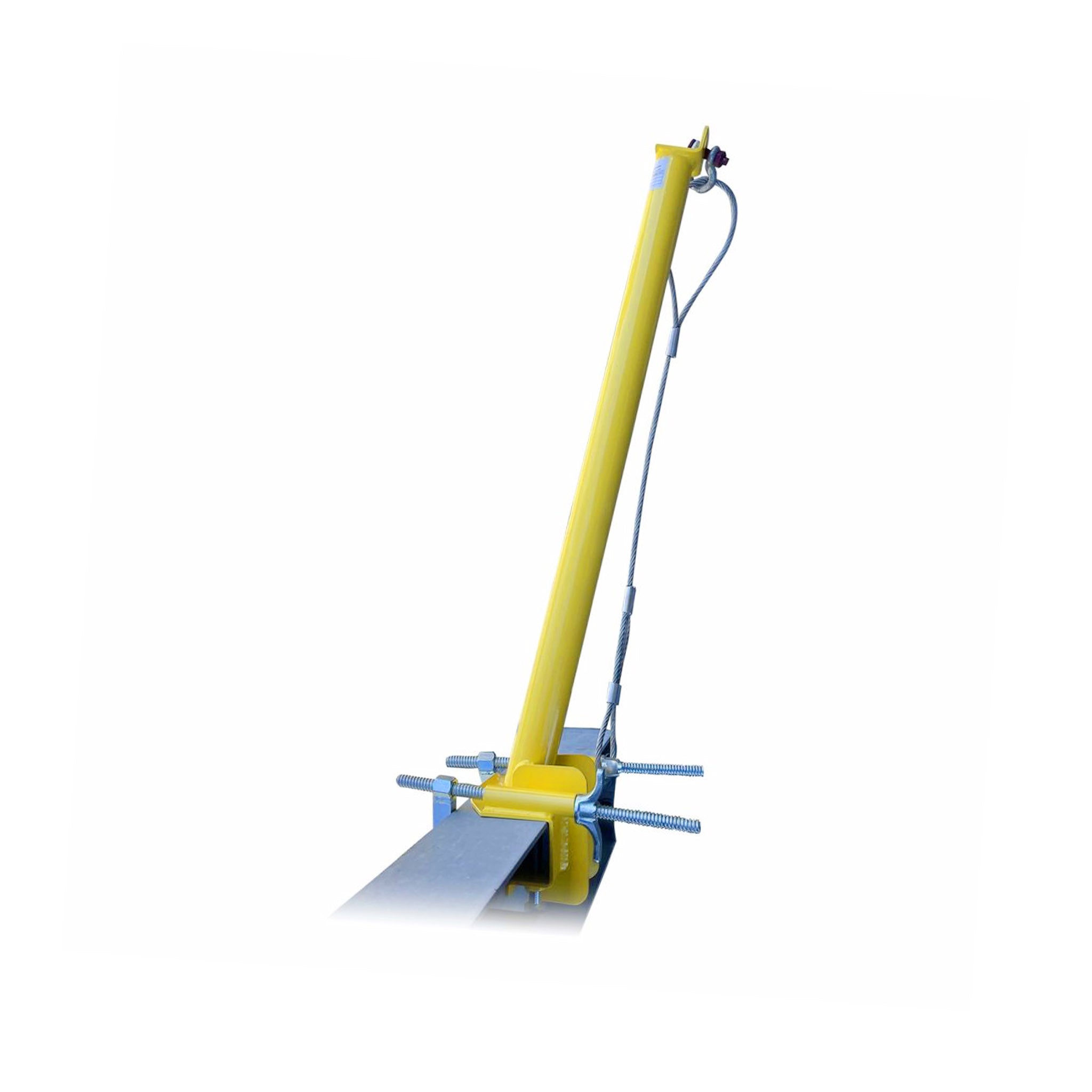

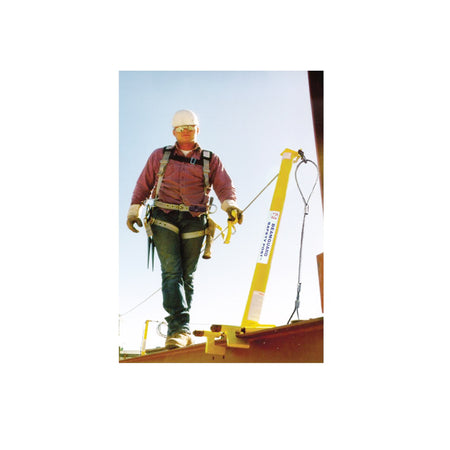

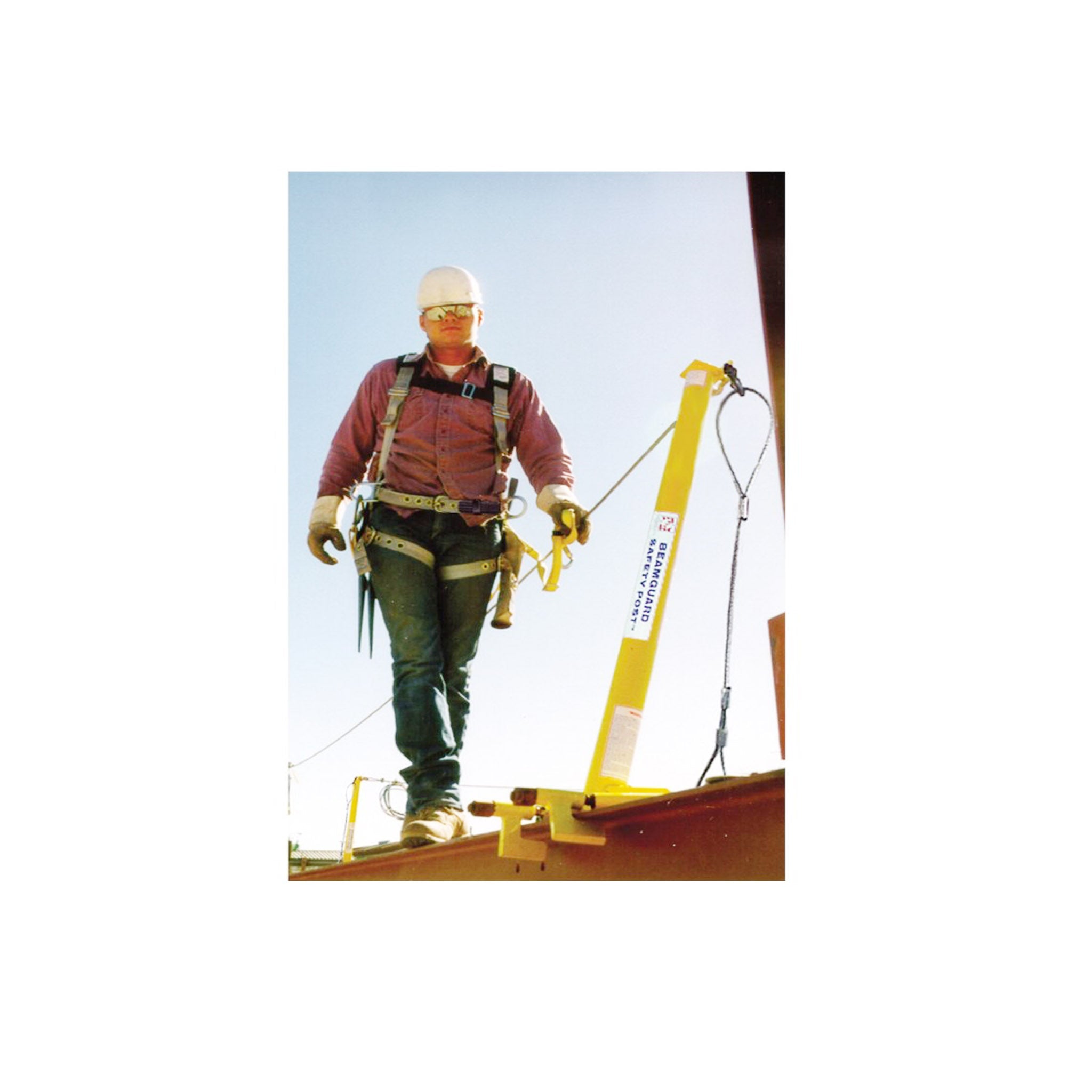

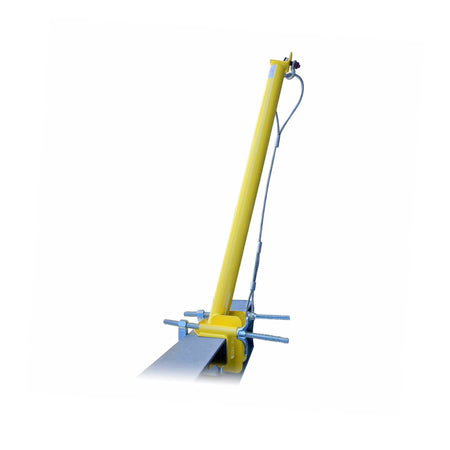

The Palmer Safety BeamGuard HLL Stanchion can be used in combination with any of Palmer Safety’s rope HLL kits and cable HLL kits. Able to accommodate up to two workers between each set of stanchions (maximum stanchion spacing is 60’), the BeamGuard has three base size options to allow for installation onto a variety of beam sizes. A Pass-Through Top Accessory is also available to facilitate 100% tie-off when transitioning between spans.

Base size compatibility:
Small: Thickness: Up to 1.25”. Width: 4” – 13.75”
Intermediate: Thickness: Up to 2.125”. Width: 4” – 19.75”
Large: Thickness: Up to 3.375”. Width: 4” – 31.75”

Part # Size Description

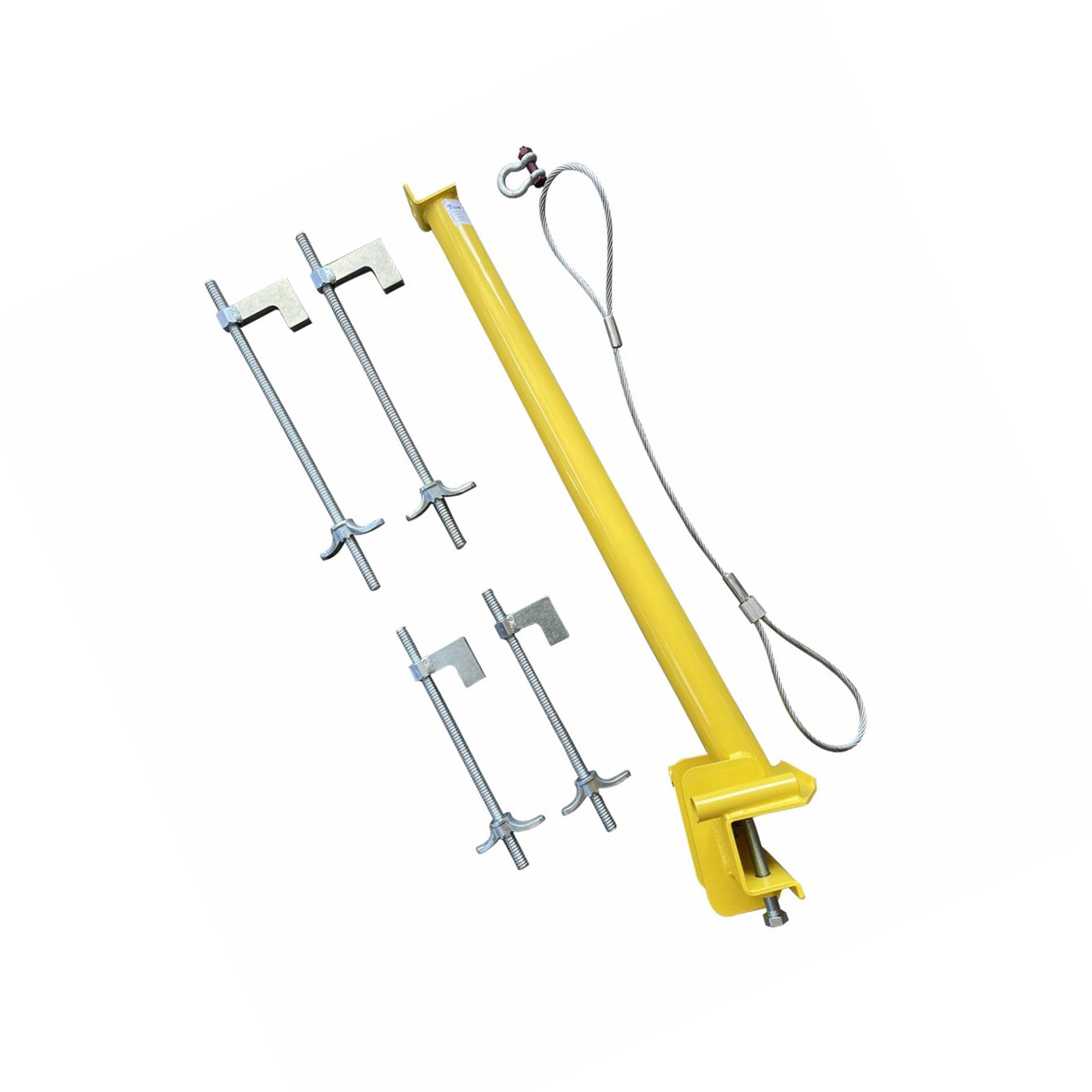

BGSAPOST BeamGuard Standard Post
BGCONNECTORSTD 18” Threaded Rods Small Flange Hook
BGCONNECTORINT 24” Threaded Rods Medium Flange Hook
BGCONNECTORLG 36” Threaded Rods Medium Flange Hook

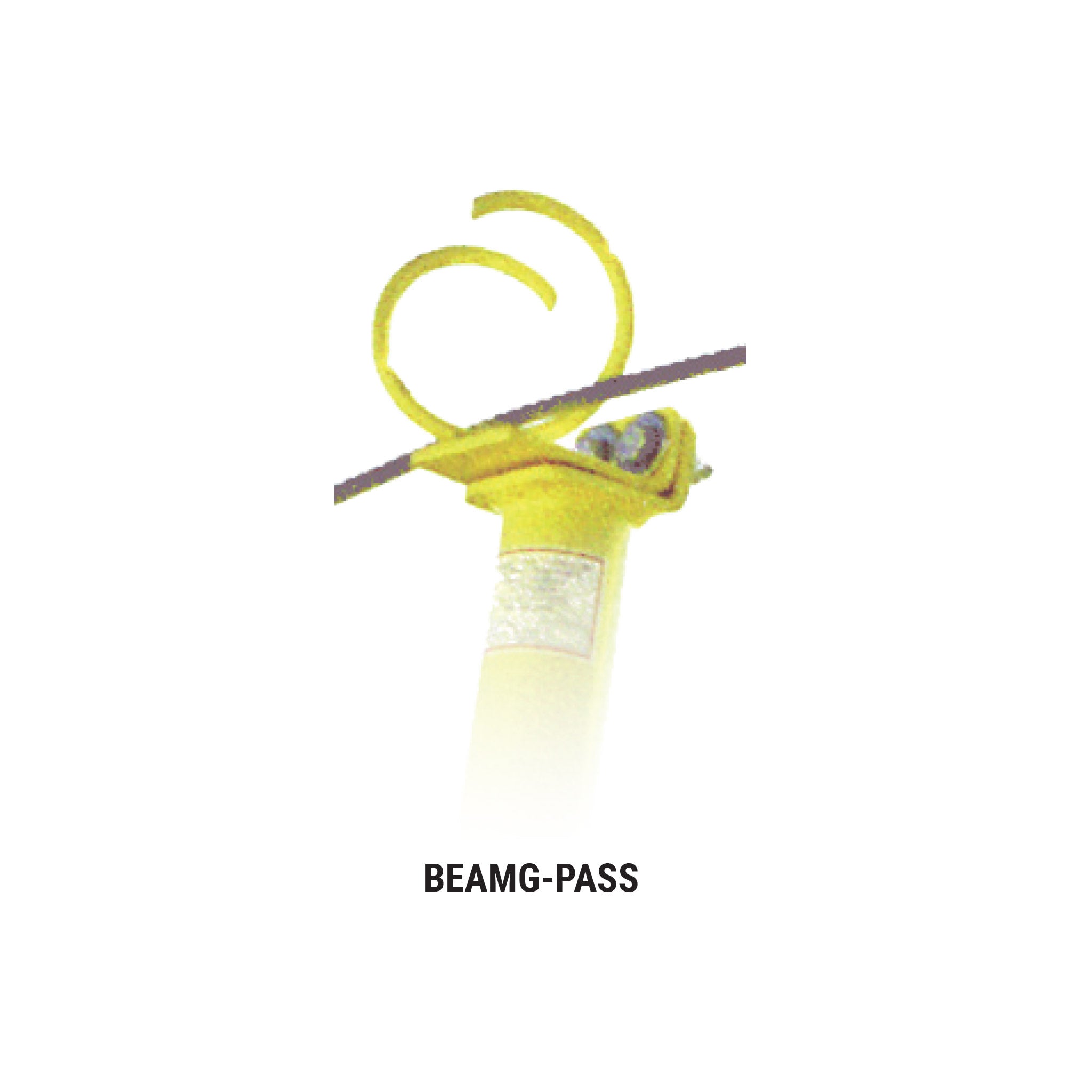

BEAMG-PASS Pass-Through Top Accessory


Key Features

USER CAPACITY:

130 – 420 lbs

DESIGN:

  • Durable and reusable
  • Use in combination with rope or cable HLL system
  • 300’ recommended maximum span length
  • Install HLL system either parallel with or perpendicular to I-beam

MATERIAL:

Powder-coated steel

MIN. BREAKING STRENGTH:

5000 lbs.

CONFORMS TO:

Meets or Exceeds ANSI Z359.1-07, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
