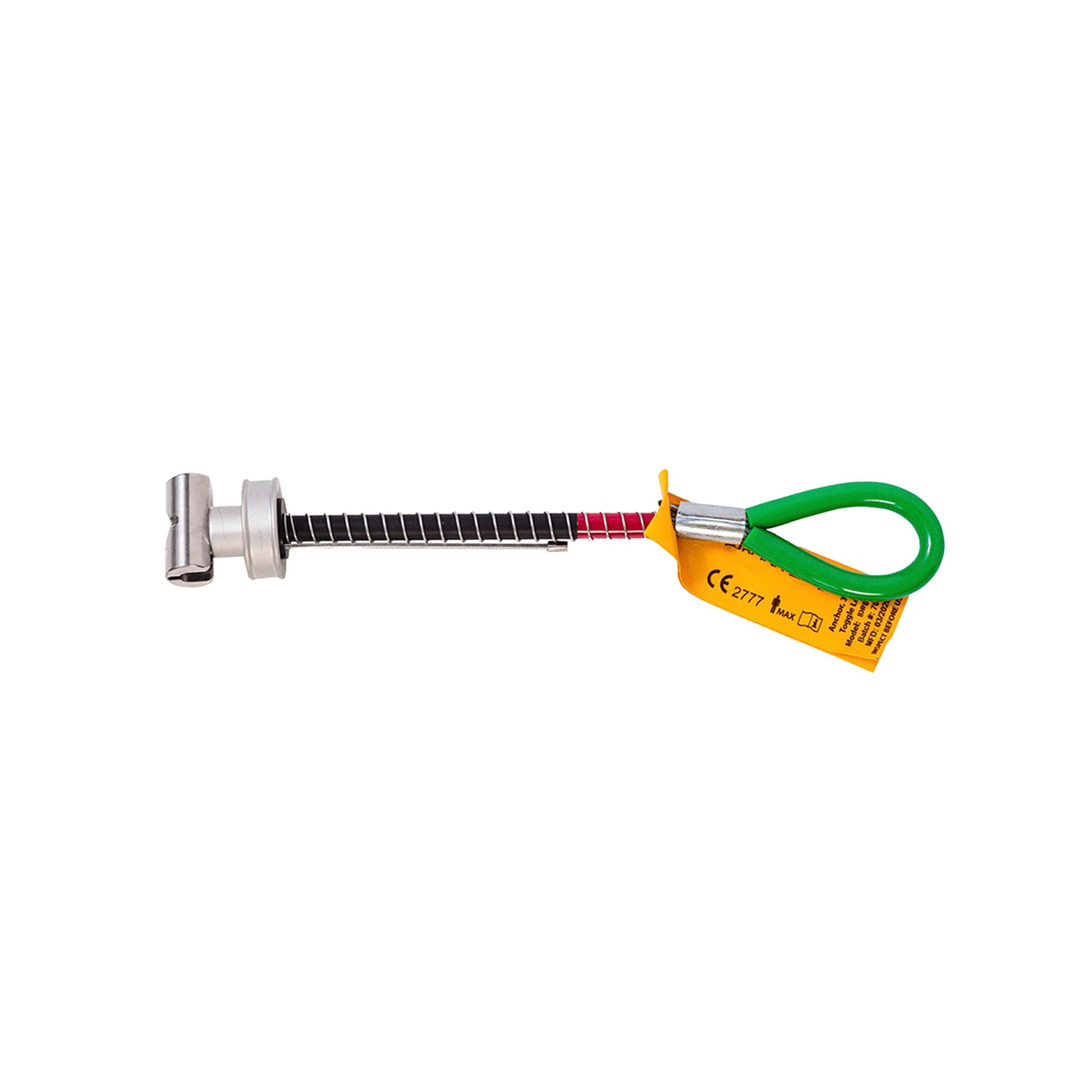

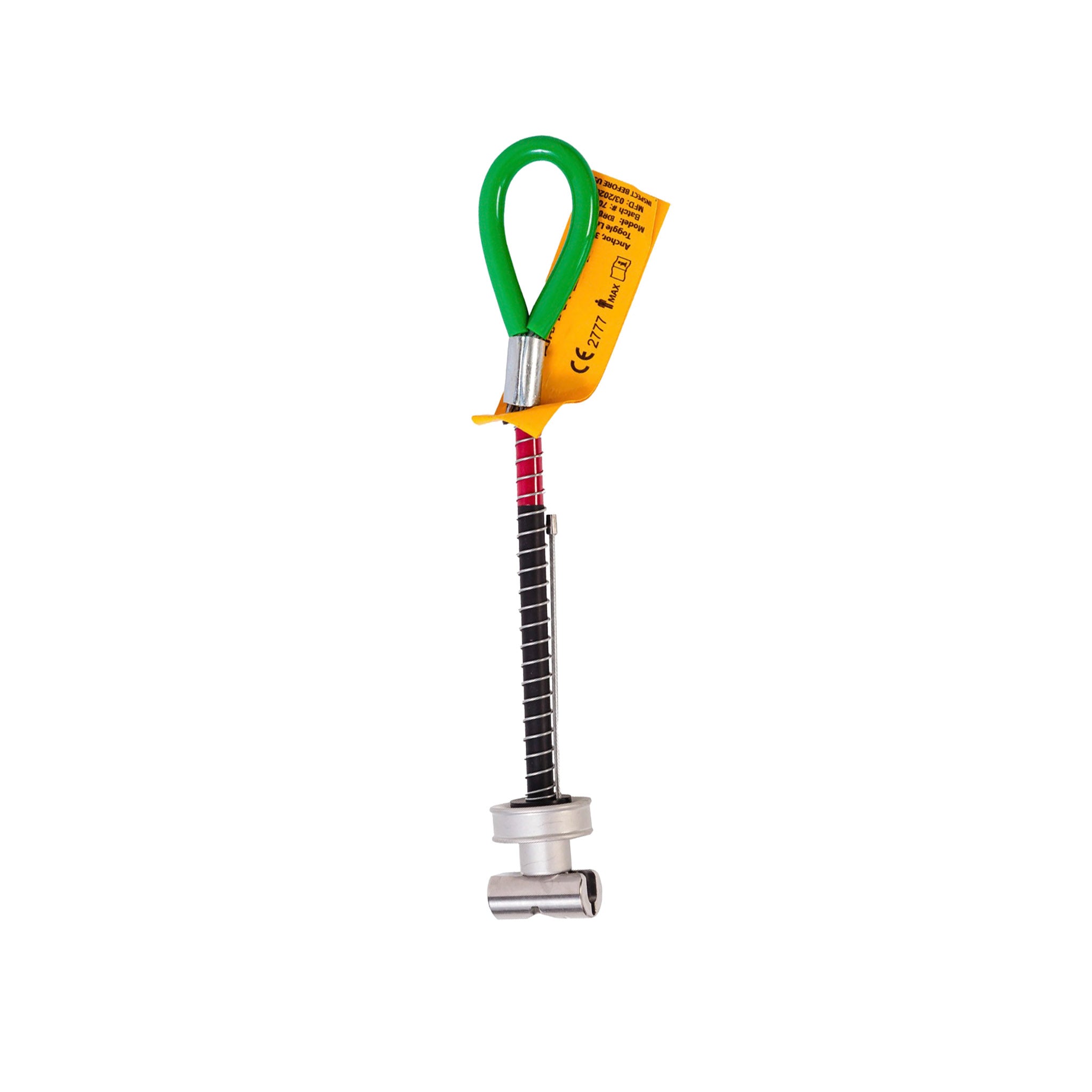

Palmer Safety 3/4 in. Toggle Lok Anchor - A345001
Order By Phone 800-515-1002
Free Local Delivery Available (NYC & Greater Area)*
Pick Up Available in Westchester & NYC
Need Product Help? Speak With A Pro 914-920-3232
This versatile, portable concrete/steel anchorage connector can be inserted inside precast concrete or steel flanges with a 3/4″ hole for lifting, hoisting, or tie-back. Palmer Safety’s Toggle Anchor is fully removable and reusable.
COMPONENTS/MATERIAL:
- Stainless steel toggle bar
- Aluminum Hole plug
- Zinc Plated Steel Spring
- Stainless steel ball shank
- Zinc Plated Copper Swage
DIMENSIONS:
Diameter .75″
Length: 11″
STATIC TENSILE STRENGTH:
5,000-lbf/22kN
CONFORMS TO:
ANSI Z359.18, ANSI Z359.7, OSHA 1910.66, OSHA 1926.502, EN 795:2012 compliant
CAPACITY:
1 user: 130 – 310 lbs.
WEIGHT:
0.45 lbs. ± 0.02 lbs.
