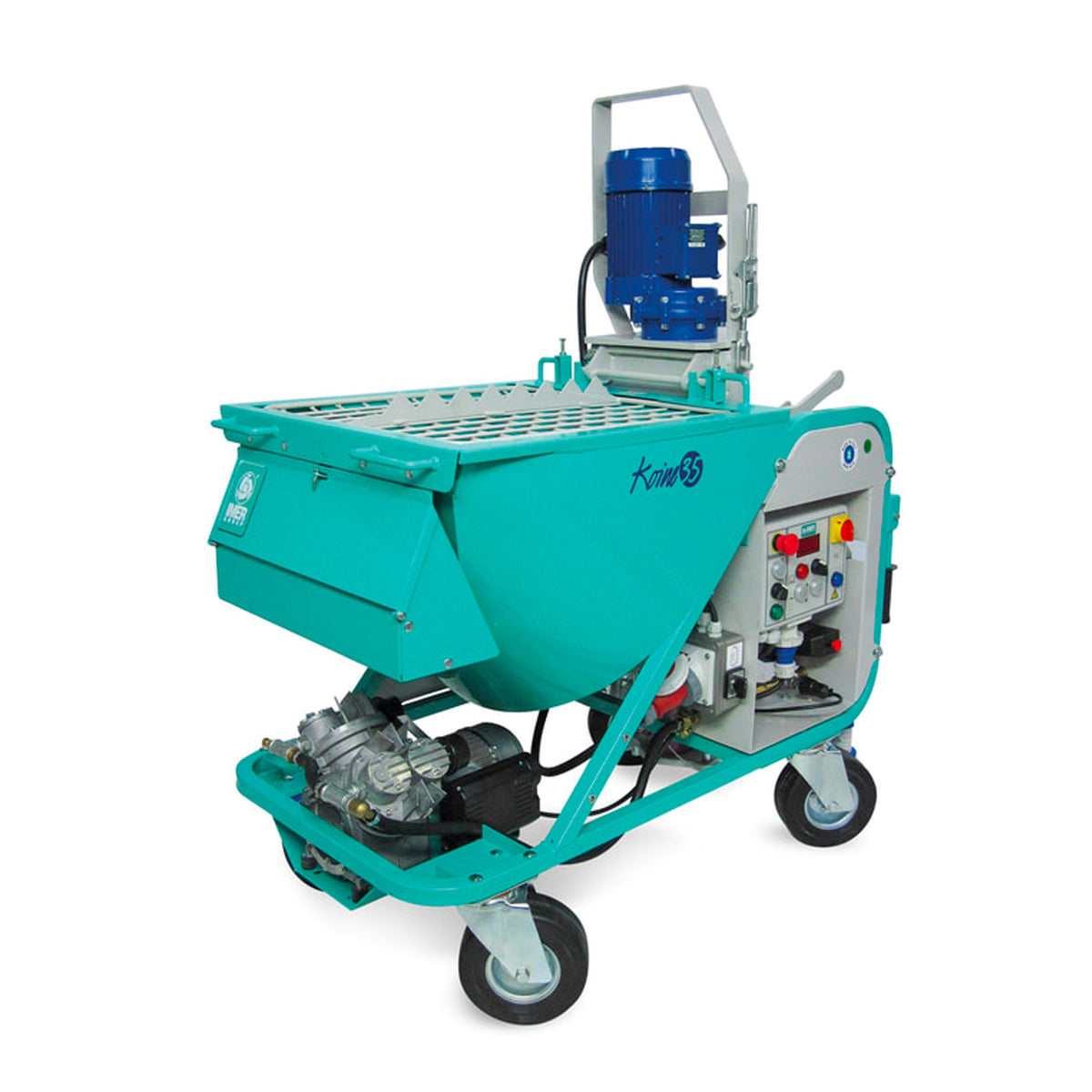

Imer Koine 35 Mixer And Pump
The Koine 3.5 mixer and pump is one of the most advanced and versatile production pumps on the market today. It is packed with features that allow it tackle a multitude of applications, yet it is compact and highly portable, making it perfect for interior or high-rise building work. The only machine capable of continuous mixing, spraying, and pumping of pre-blended cementitious and gypsum-based mortars, stucco, fireproofing, self-leveling underlayments, and grouts.
- Store all your accessories in this handy toolbox. Never lose pieces

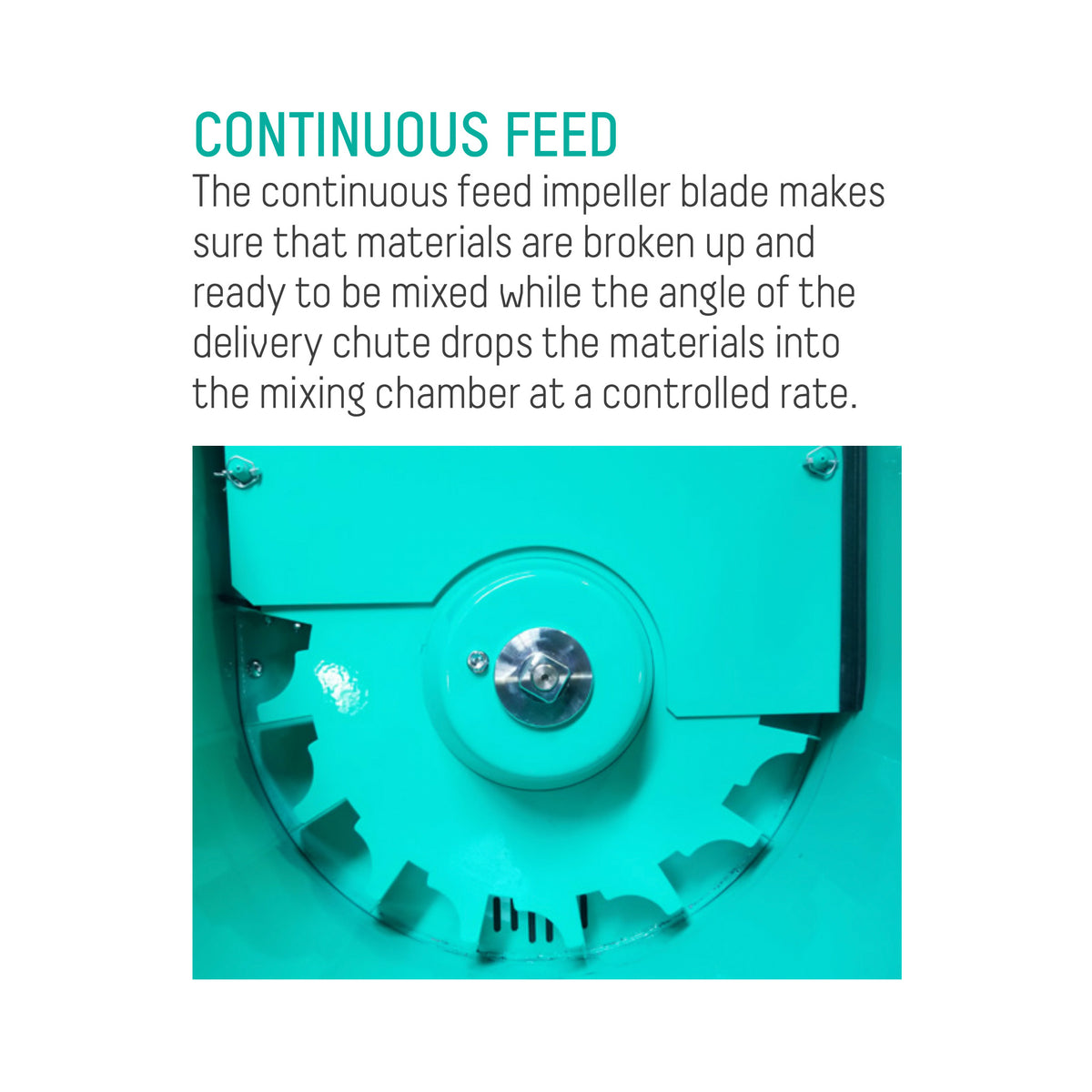

- The continuous feed impeller blade feeds your preblended material
- Add the optional compressor to mix and spray 16 bags of fireproofing per hour
- Includes adjustable D8 - 1.5 rotor / stator Pressure: bar 15 (PSI 218) Flow rate at 300 rpm: 26 l/min (Gal/min 7)
- Pump and spray up to 300 feet away
- Single-phase 3 HP motor with “turbo boost” to 5 HP
- Inverter technology balances the power and monitors the electricity for maximum performance
- 4-speed material flow rate delivers up to 120 - 50lb bags of self-leveling per hour
- Electric motor is thermally protected to protect from overheating
- Self-priming water pump with stainless steel housing and brass impeller
Designed for use with preblended mortars, underlayments, grouts and fireproofing. These pumps are ideal for applications that require continuous pumping or spraying
in high volume.
Water is precisely controlled and measured then introduced into the mixing chamber to allow constant flow to the work area. Every bag will be consistent from start to finish with no cold joints.
Set the pump up once to set the proper water ratio and speed. Then, just keep feeding the preblended bags of material into the dry hopper. The cement and water ratio is automatically blended and sheared and the material being mixed and pumped is perfect all day long.
Clean up is minimal as the hopper can remain full of dry material, ready for the next day’s work. The water booster cleans out the hose quickly with minimal mess. Just start up the pump the next day and you are ready to go right where you left off the day before.
Our continuous pumps can be found in most places wherematerial needs to be mixed and pumped at a high rate aswell as high quality. IMER continuous pumps have set the standard on speed and performance.
All the motors on our pumps are 100% duty cycle which means that they can run all day, every day.
